Goodwe EHB Series GW0010-EHB 10kW Single Phase Hybrid inverter Goodwe Hybrid from China Factory

威博娛樂城

Chat online Now

威博娛樂城

China,Chongqing,Chongqing
Verified Supplier

Chat online Now



Leave a Message

we will reply you within 24 hours!

Chat Now Send Email

Home>
Hybrid Solar System
>Goodwe EHB Series GW0010-EHB 10kW Single Phase Hybrid inverter Goodwe Hybrid

Quality Goodwe EHB Series GW0010-EHB 10kW Single Phase Hybrid inverter Goodwe Hybrid for sale





Goodwe EHB Series GW0010-EHB 10kW Single Phase Hybrid inverter Goodwe Hybrid

惭翱蚕： 10 units
笔谤颈肠别： Negotiable
Get Latest Price


Supply Ability	1000units/week
Packaging Details	carton package
Type	DC/AC Inverters
Phase	single Phase
Inverter Efficiency	98.3%
Input Voltage	180-1500V
Output Frequency	50/60Hz
Protection degree	IP65
Operating Altitude	4000(>3000 derating)
Operation Temperature Range	-30词60℃
User Interface	LED, Bluetooth+APP
PID recovery	optional
Brand Name	Goodwe
Model Number	GW0010-EHB
Certification	SAA / CE / ROHS / ISO9001 / CCC
Place of Origin	China

View Detail Information

Inquiry by Email Get Latest Price

Chat online Now Ask for best deal

Explore similar products

Growatt SPH 10000TL3 BH UP residential storage inverter Growatt 10kw hybrid

Chat online Now
EH Series GW6000-EH Hybrid Solar Inverter Goodwe Hybrid Inverter 6kW Single

Chat online Now
Goodwe EH Series GW5000-EH Goodwe Hybrid Inverter Hybrid Solar Inverter 5kW

Chat online Now
Goodwe EH Series GW3600-EH Hybrid Solar Inverter Goodwe Hybrid Inverter 3.6kW

Chat online Now

Product Details
Company Details

Product Specification


Supply Ability	1000units/week	Packaging Details	carton package
Type	DC/AC Inverters	Phase	single Phase
Inverter Efficiency	98.3%	Input Voltage	180-1500V
Output Frequency	50/60Hz	Protection degree	IP65
Operating Altitude	4000(>3000 derating)	Operation Temperature Range	-30词60℃
User Interface	LED, Bluetooth+APP	PID recovery	optional
Brand Name	Goodwe	Model Number	GW0010-EHB
Certification	SAA / CE / ROHS / ISO9001 / CCC	Place of Origin	China

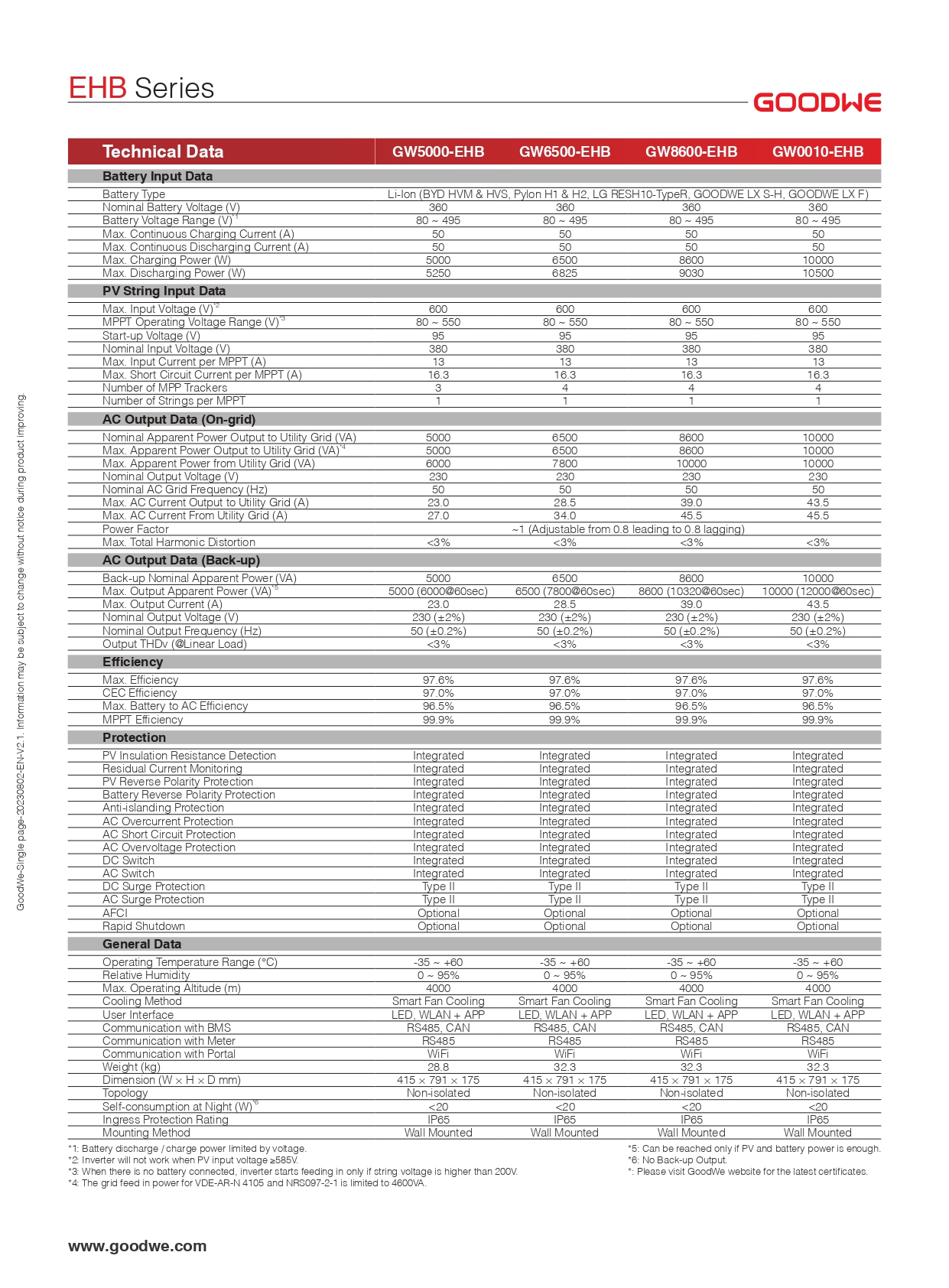

Goodwe EHB Series GW0010-EHB 10kW Single Phase Hybrid inverter Goodwe Hybrid Inverter Hybrid Solar Inverter

Battery Input Data
Battery Type	Li-Ion (BYD HVM & HVS, Pylon H1 & H2, LG RESH10-TypeR, GOODWE LX S-H, GOODWE LX F)
Nominal Battery Voltage (V)	360	360	360	360
Battery Voltage Range (V)^*1	80 ~ 495	80 ~ 495	80 ~ 495	80 ~ 495
Max. Continuous Charging Current (A)	50	50	50	50
Max. Continuous Discharging Current (A)	50	50	50	50
Max. Charging Power (W)	5000	6500	8600	10000
Max. Discharging Power (W)	5250	6825	9030	10500
PV String Input Data
Max. Input Voltage (V)^*2	600	600	600	600
MPPT Operating Voltage Range (V)^*3	80 ~ 550	80 ~ 550	80 ~ 550	80 ~ 550
Start-up Voltage (V)	95	95	95	95
Nominal Input Voltage (V)	380	380	380	380
Max. Input Current per MPPT (A)	13	13	13	13
Max. Short Circuit Current per MPPT (A)	16.3	16.3	16.3	16.3
Number of MPP Trackers	3	4	4	4
Number of Strings per MPPT	1	1	1	1
AC Output Data (On-grid)
Nominal Apparent Power Output to Utility Grid (VA)	5000	6500	8600	10000
Max. Apparent Power Output to Utility Grid (VA)^*4	5000	6500	8600	10000
Max. Apparent Power from Utility Grid (VA)	6000	7800	10000	10000
Nominal Output Voltage (V)	230	230	230	230
Nominal AC Grid Frequency (Hz)	50	50	50	50
Max. AC Current Output to Utility Grid (A)	23.0	28.5	39.0	43.5
Max. AC Current From Utility Grid (A)	27.0	34.0	45.5	45.5
Power Factor		~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion	<3%	<3%	<3%	<3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA)	5000	6500	8600	10000
Max. Output Apparent Power (VA)^*5	5000 (6000@60sec)	6500 (7800@60sec)	8600 (10320@60sec)	10000 (12000@60sec)
Max. Output Current (A)	23.0	28.5	39.0	43.5
Nominal Output Voltage (V)	230 (±2%)	230 (±2%)	230 (±2%)	230 (±2%)
Nominal Output Frequency (Hz)	50 (±0.2%)	50 (±0.2%)	50 (±0.2%)	50 (±0.2%)
Output THDv (@Linear Load)	<3%	<3%	<3%	<3%
Efficiency
Max. Efficiency	97.6%	97.6%	97.6%	97.6%
CEC Efficiency	97.0%	97.0%	97.0%	97.0%
Max. Battery to AC Efficiency	96.5%	96.5%	96.5%	96.5%
MPPT Efficiency	99.9%	99.9%	99.9%	99.9%
Protection
PV Insulation Resistance Detection	Integrated	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated	Integrated
PV Reverse Polarity Protection	Integrated	Integrated	Integrated	Integrated
Battery Reverse Polarity Protection	Integrated	Integrated	Integrated	Integrated
Anti-islanding Protection	Integrated	Integrated	Integrated	Integrated
AC Overcurrent Protection	Integrated	Integrated	Integrated	Integrated
AC Short Circuit Protection	Integrated	Integrated	Integrated	Integrated
AC Overvoltage Protection	Integrated	Integrated	Integrated	Integrated
DC Switch	Integrated	Integrated	Integrated	Integrated
AC Switch	Integrated	Integrated	Integrated	Integrated
DC Surge Protection	Type II	Type II	Type II	Type II
AC Surge Protection	Type II	Type II	Type II	Type II
AFCI	Optional	Optional	Optional	Optional
Rapid Shutdown	Optional	Optional	Optional	Optional
General Data
Operating Temperature Range (°C)	-35 ~ +60	-35 ~ +60	-35 ~ +60	-35 ~ +60
Relative Humidity	0 ~ 95%	0 ~ 95%	0 ~ 95%	0 ~ 95%
Max. Operating Altitude (m)	4000	4000	4000	4000
Cooling Method	Smart Fan Cooling	Smart Fan Cooling	Smart Fan Cooling	Smart Fan Cooling
User Interface	LED, WLAN + APP	LED, WLAN + APP	LED, WLAN + APP	LED, WLAN + APP
Communication with BMS	RS485, CAN	RS485, CAN	RS485, CAN	RS485, CAN
Communication with Meter	RS485	RS485	RS485	RS485
Communication with Portal	WiFi	WiFi	WiFi	WiFi
Weight (kg)	28.8	32.3	32.3	32.3
Dimension (W × H × D mm)	415 × 791 × 175	415 × 791 × 175	415 × 791 × 175	415 × 791 × 175
Topology	Non-isolated	Non-isolated	Non-isolated	Non-isolated
Self-consumption at Night (W)^*6	<20	<20	<20	<20
Ingress Protection Rating	IP65	IP65	IP65	IP65
Mounting Method	Wall Mounted	Wall Mounted	Wall Mounted	Wall Mounted
